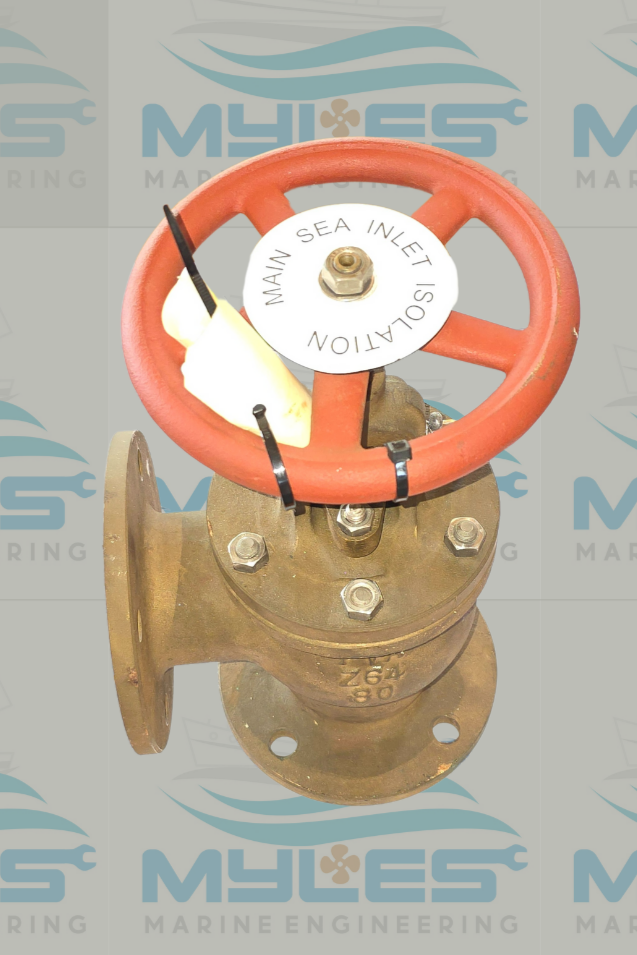

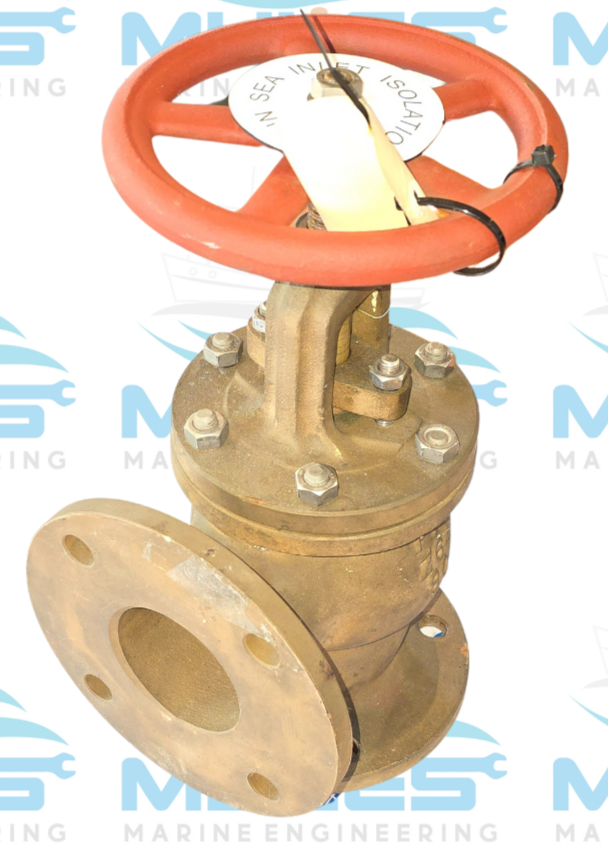

Bronze 3" (75mm) Angle Bronze Globe Valve - Refurbished

080Z64AE Promet Valves

PVA Z64 80

AS 2129 E Flanged, Rising stem cast bronze valve with outside screw, bolted cover, screw down screw lift, bronze trim and integral seat.

Bore Diameter: 3" (75mm)

Flange Outside Diameter: 185.0mm

Bolt Circle Diameter: 146.0mm

Bolt holes: 4

Bolt Hole Diameter: 18.0mm

Overall Height (flange face to top of spindle): 387mm

Distance between flange centres: 127mm

Mass Kg: 20

Last test 14/04/2020 - Test Pressure 200 PSI.

Refurbished spare part that presents in excellent serviceable condition.

In stock ready to ship.

Contact Myles Marine Engineering for further information and shipping estimate.
